# 6. Tips to using auto_arima¶

The auto_arima function fits the best ARIMA model to a univariate time series according to a provided information criterion (either AIC, AICc, BIC or HQIC). The function performs a search (either stepwise or parallelized) over possible model & seasonal orders within the constraints provided, and selects the parameters that minimize the given metric.

The auto_arima function can be daunting. There are a lot of parameters to tune, and the outcome is heavily dependent on a number of them. In this section, we lay out several considerations you’ll want to make when you fit your ARIMA models.

## 6.1. Understand p, d, and q¶

ARIMA models are made up of three different terms:

• $$p$$: The order of the auto-regressive (AR) model (i.e., the number of lag observations). A time series is considered AR when previous values in the time series are very predictive of later values. An AR process will show a very gradual decrease in the ACF plot.
• $$d$$: The degree of differencing.
• $$q$$: The order of the moving average (MA) model. This is essentially the size of the “window” function over your time series data. An MA process is a linear combination of past errors.

Often times, ARIMA models are written in the form $$ARIMA(p, d, q)$$, where a model with no differencing term, e.g., $$ARIMA(1, 0, 12)$$, would be an ARMA (made up of an auto-regressive term and a moving average term, but no integrative term, hence no “I”).

In pmdarima.ARIMA, these parameters are specified in the order argument as a tuple:

order = (1, 0, 12)  # p=1, d=0, q=12
order = (1, 1, 3)  # p=1, d=1, q=3
# etc.


The parameters p and q can be iteratively searched-for with the auto_arima function, but the differencing term, d, requires a special set of tests of stationarity to estimate.

### 6.1.1. Understanding differencing (d)¶

An integrative term, d, is typically only used in the case of non-stationary data. Stationarity in a time series indicates that a series’ statistical attributes, such as mean, variance, etc., are constant over time (i.e., it exhibits low heteroskedasticity).

A stationary time series is far more easy to learn and forecast from. With the d parameter, you can force the ARIMA model to adjust for non-stationarity on its own, without having to worry about doing so manually.

The value of d determines the number of periods to lag the response prior to computing differences. E.g.,

from pmdarima.utils import c, diff

# lag 1, diff 1
x = c(10, 4, 2, 9, 34)
diff(x, lag=1, differences=1)
# Returns: array([ -6.,  -2.,   7.,  25.], dtype=float32)


Note that lag and differences are not the same!

diff(x, lag=1, differences=2)
# Returns: array([ 4.,  9., 18.], dtype=float32)

diff(x, lag=2, differences=1)
# Returns: array([-8.,  5., 32.], dtype=float32)


The lag corresponds to the offset in the time period lag, whereas the differences parameter is the number of times the differences are computed. Therefore, e.g., for differences=2, the procedure is essentially computing the difference twice:

x = c(10, 4, 2, 9, 34)

# 1
x_lag = x[1:]  # first lag
x = x_lag - x[:-1]  # first difference
# x = [ -6.,  -2.,   7.,  25.]

# 2
x_lag = x[1:]  # second lag
x = x_lag - x[:-1]
# x = [ 4.,  9., 18.]


### 6.1.2. Enforcing stationarity¶

The pmdarima.arima.stationarity sub-module defines various tests of stationarity for testing a null hypothesis that an observable univariate time series is stationary around a deterministic trend (i.e. trend-stationary).

A time series is stationary when its mean, variance and auto-correlation, etc., are constant over time. Many time-series methods may perform better when a time-series is stationary, since forecasting values becomes a far easier task for a stationary time series. ARIMAs that include differencing (i.e., d > 0) assume that the data becomes stationary after differencing. This is called difference-stationary. Auto-correlation plots are an easy way to determine whether your time series is sufficiently stationary for modeling. If the plot does not appear relatively stationary, your model will likely need a differencing term. These can be determined by using an Augmented Dickey-Fuller test, or various other statistical testing methods. Note that auto_arima will automatically determine the appropriate differencing term for you by default.

import pmdarima as pm
from pmdarima import datasets

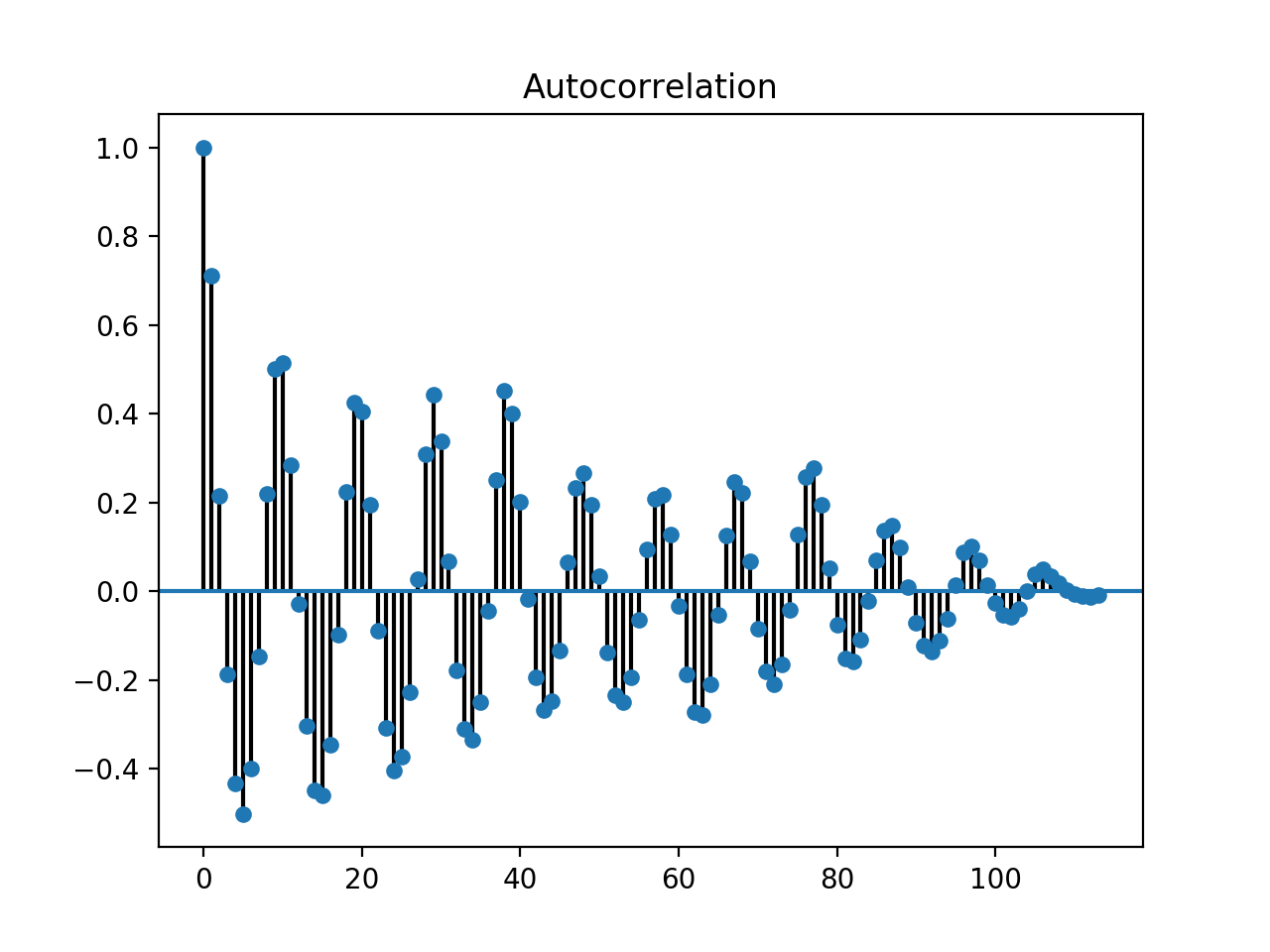

pm.plot_acf(y)


We can examine a time-series’ auto-correlation plot given the code above. However, to more quantitatively determine whether we need to difference our data in order to make it stationary, we can conduct a test of stationarity (either ADFTest, PPTest or KPSSTest).

Each of these tests is based on the R source code, and are primarily intended to be used internally. See this issue for more info. Here’s an example of an ADF test:

from pmdarima.arima.stationarity import ADFTest

# Test whether we should difference at the alpha=0.05
# significance level
p_val, should_diff = adf_test.should_diff(y)  # (0.01, False)


The verdict, per the ADF test, is that we should not difference. Pmdarima also provides a more handy interface for estimating your d parameter more directly. This is the preferred public method for accessing tests of stationarity:

from pmdarima.arima.utils import ndiffs

# Estimate the number of differences using an ADF test:
n_adf = ndiffs(y, test='adf')  # -> 0

# Or a KPSS test (auto_arima default):
n_kpss = ndiffs(y, test='kpss')  # -> 0

# Or a PP test:
n_pp = ndiffs(y, test='pp')  # -> 0
assert n_adf == n_kpss == n_pp == 0


The easiest way to make your data stationary in the case of ARIMA models is to allow auto_arima to work its magic, estimate the appropriate d value, and difference the time series accordingly. However, other common transformations for enforcing stationarity include (sometimes in combination with one another):

• Square root or N-th root transformations
• De-trending your time series
• Differencing your time series one or more times
• Log transformations

Note, however, that a transformation on data as a pre-processing stage will result in forecasts in the transformed space. When in doubt, let the auto_arima function do the heavy lifting for you. Read more on difference stationarity in this Duke article.

## 6.2. Understand P, D, Q and m¶

Seasonal ARIMA models have three parameters that heavily resemble our p, d and q parameters:

• P: The order of the seasonal component for the auto-regressive (AR) model.
• D: The integration order of the seasonal process.
• Q: The order of the seasonal component of the moving average (MA) model.

P and Q and be estimated similarly to p and q via auto_arima, and D can be estimated via a Canova-Hansen test, however m generally requires subject matter knowledge of the data.

### 6.2.1. Estimating the seasonal differencing term, D¶

Seasonality can manifest itself in timeseries data in unexpected ways. Sometimes trends are partially dependent on the time of year or month. Other times, they may be related to weather patterns. In either case, seasonality is a real consideration that must be made. The pmdarima package provides a test of seasonality for including seasonal terms in your ARIMA models.

We can use a Canova-Hansen test to estimate our seasonal differencing term:

from pmdarima.datasets import load_lynx
from pmdarima.arima.utils import nsdiffs

# estimate number of seasonal differences using a Canova-Hansen test
D = nsdiffs(lynx,
m=10,  # commonly requires knowledge of dataset
max_D=12,
test='ch')  # -> 0

# or use the OCSB test (by default)
nsdiffs(lynx,
m=10,
max_D=12,
test='ocsb')  # -> 0


By default, this will be estimated in auto_arima if seasonal=True. Make sure to pay attention to the m and the max_D parameters.

### 6.2.2. Setting m¶

The m parameter relates to the number of observations per seasonal cycle, and is one that must be known apriori. Typically, m will correspond to some recurrent periodicity such as:

• 7 - daily
• 12 - monthly
• 52 - weekly

Depending on how it’s set, it can dramatically impact the outcome of an ARIMA model. For instance, consider the wineind dataset when fit with m=1 vs. m=12:

import pmdarima as pm

train, test = data[:150], data[150:]

# Fit two different ARIMAs
m1 = pm.auto_arima(train, error_action='ignore', seasonal=True, m=1)
m12 = pm.auto_arima(train, error_action='ignore', seasonal=True, m=12)

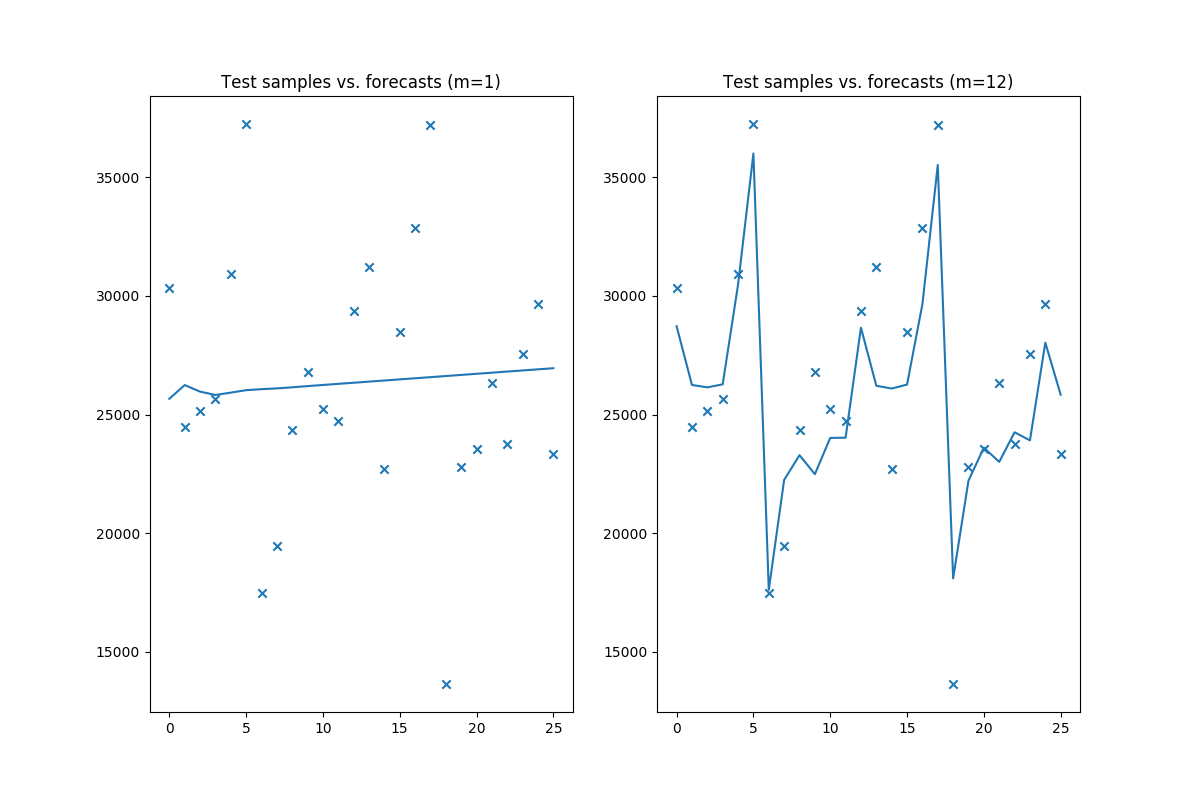

The forecasts these two models will produce are wildly different (code to reproduce):

import matplotlib.pyplot as plt

fig, axes = plt.subplots(1, 2, figsize=(12, 8))
x = np.arange(test.shape[0])

# Plot m=1
axes[0].scatter(x, test, marker='x')
axes[0].plot(x, m1.predict(n_periods=test.shape[0]))
axes[0].set_title('Test samples vs. forecasts (m=1)')

# Plot m=12
axes[1].scatter(x, test, marker='x')
axes[1].plot(x, m12.predict(n_periods=test.shape[0]))
axes[1].set_title('Test samples vs. forecasts (m=12)')

plt.show()


As you can see, depending on the value of m, you may either get a very good model or a very bad one!!! The author of R’s auto.arima, Rob Hyndman, wrote a very good blog post on the period of a seasonal time series.

## 6.3. Parallel vs. stepwise¶

The auto_arima function has two modes:

• Stepwise
• Parallelized (slower)

The parallel approach is a naive, brute force grid search over various combinations of hyper parameters. It will commonly take longer for several reasons. First of all, there is no intelligent procedure as to how model orders are tested; they are all tested (no short-circuiting), which can take a while. Second, there is more overhead in model serialization due to the method in which joblib parallelizes operations.

The stepwise approach follows the strategy laid out by Hyndman and Khandakar in their 2008 paper, “Automatic Time Series Forecasting: The forecast Package for R”.

Step 1: Try four possible models to start:

• $$ARIMA(2, d, 2)$$ if m = 1 and $$ARIMA(2, d, 2)(1, D, 1)$$ if m > 1
• $$ARIMA(0, d, 0)$$ if m = 1 and $$ARIMA(0, d, 0)(0, D, 0)$$ if m > 1
• $$ARIMA(1, d, 0)$$ if m = 1 and $$ARIMA(1, d, 0)(1, D, 0)$$ if m > 1
• $$ARIMA(0, d, 1)$$ if m = 1 and $$ARIMA(0, d, 1)(0, D, 1)$$ if m > 1

The model with the smallest AIC (or BIC, or AICc, etc., depending on the minimization criteria) is selected. This is the “current best” model.

Step 2: Consider a number of other models:

• Where one of $$p$$, $$q$$, $$P$$ and $$Q$$ is allowed to vary by $$\pm 1$$ from the current best model
• Where $$p$$ and $$q$$ both vary by $$\pm 1$$ from the current best model
• Where $$P$$ and $$Q$$ both vary by $$\pm 1$$ from the current best model

Whenever a model with a lower information criteria is found, it becomes the new current best model, and the procedure is repeated until it cannot find a model close to the current best model with a lower information criterion or the process exceeds one of the execution thresholds set via arima.StepwiseContext.

When in doubt, stepwise=True is encouraged.

### 6.3.1. Using StepwiseContext¶

The StepwiseContext can be used to set the maximum number of steps and/or duration for the stepwise approach. Please note that these are soft limits that are checked periodically during the stepwise search. The search will be stopped as soon as one of the thresholds are hit, and the best fit model at that time is returned. This may be helpful in scenarios that need to balance between best fit model and time constraints.

import pmdarima as pm
from pmdarima.arima import StepwiseContext

train, test = data[:150], data[150:]

with StepwiseContext(max_dur=15):
model = pm.auto_arima(train, stepwise=True, error_action='ignore', seasonal=True, m=12)


### 6.3.2. Other performance concerns¶

Fitting large models can take some time, and the amount of time tends to scale with m. If you are fitting a very large set of models, there are some things you can do to speed things up (at the cost of precision, of course):

• Make sure you have the right value for m. If you get this wrong, not only will your model suffer, it may take a long time to fit.
• Use stepwise. This is always recommended, but double check if speed is a concern.
• Use a sane value for max_p, max_q, max_P and max_Q. You don’t need to search too high; those models will likely be very overfit, anyways.
• Try using different optimization methods. For instance, method='nm' seems to perform more quickly than the default ‘lbfgs’, at the cost of higher amounts of approximation.
• Reduce the maxiter kwarg. The default is 50, but reducing it by 10-20 iterations is often a good trade-off between speed and robustness.
• Manipulate the cov_kwds. If you really want to go down the rabbit hole, you can read about the **fit_kwargs available to you in the auto_arima function on the statsmodels page
• Pre-compute d or D. You can use the pmdarima.arima.ndiffs() and pmdarima.arima.nsdiffs() methods to compute these ahead of time.
• Try using exogenous features instead of a seasonal fit. Sometimes, using fourier exogenous variables will remove the need for a seasonal model. See pmdarima.preprocessing.FourierFeaturizer for more information.

## 6.4. Pipelining¶

Sometimes, your data will require several transformations before it’s ready to be modeled-on. Similar to the scikit-learn Pipeline, we provide our own modeling pipeline (see pmdarima.pipeline: Pipelining transformers & ARIMAs). This will allow you to stack an arbitrary number of transformations together before being pushed into an ARIMA or AutoARIMA estimator:

from pmdarima.pipeline import Pipeline
from pmdarima.preprocessing import BoxCoxEndogTransformer
import pmdarima as pm
